SCB-PT series passive drive controller
SCB-PB series passive drive controller
Combines high quality, flexibility, accuracy and reliability

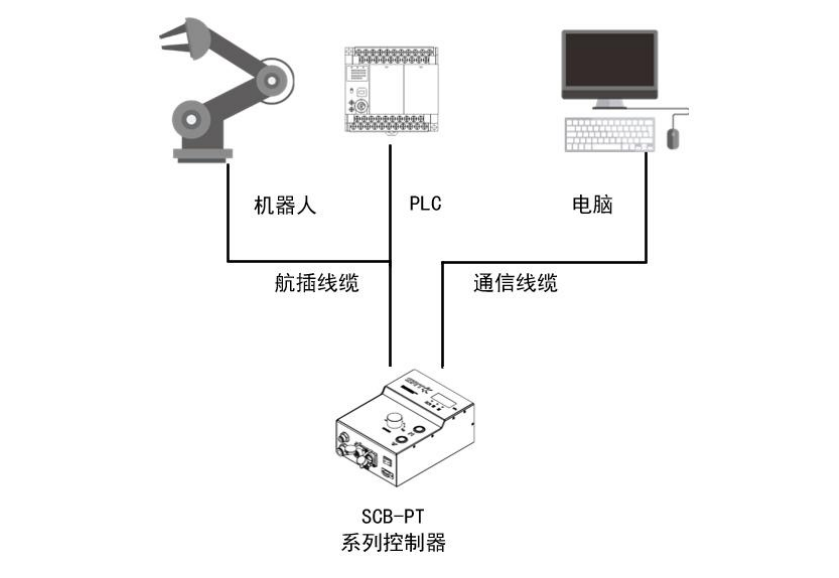

Circuit connection diagram

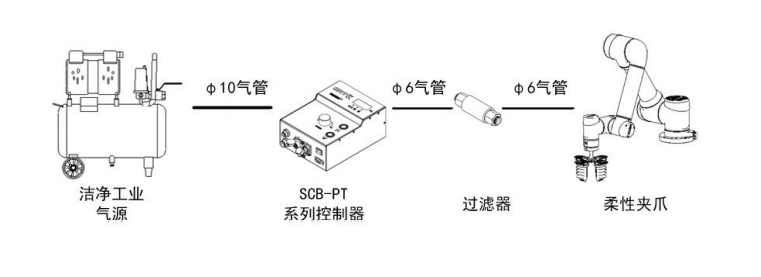

Schematic diagram of gas circuit connection

Features
1. High speed response
The controller uses a large flow of pneumatic components, the output gas flow is large, and the clamping jaw action frequency is efficient.
2. Eight-position pressure regulation
There are eight built-in gears, which can store up to eight sets of grabbing and opening pressure values, which can be switched by I/O signals to cope with complex working conditions.

3. High air pressure accuracy
Through the cooperation of the internal pneumatic components of the controller and the program algorithm, the precise output of the controller's air pressure can be achieved.

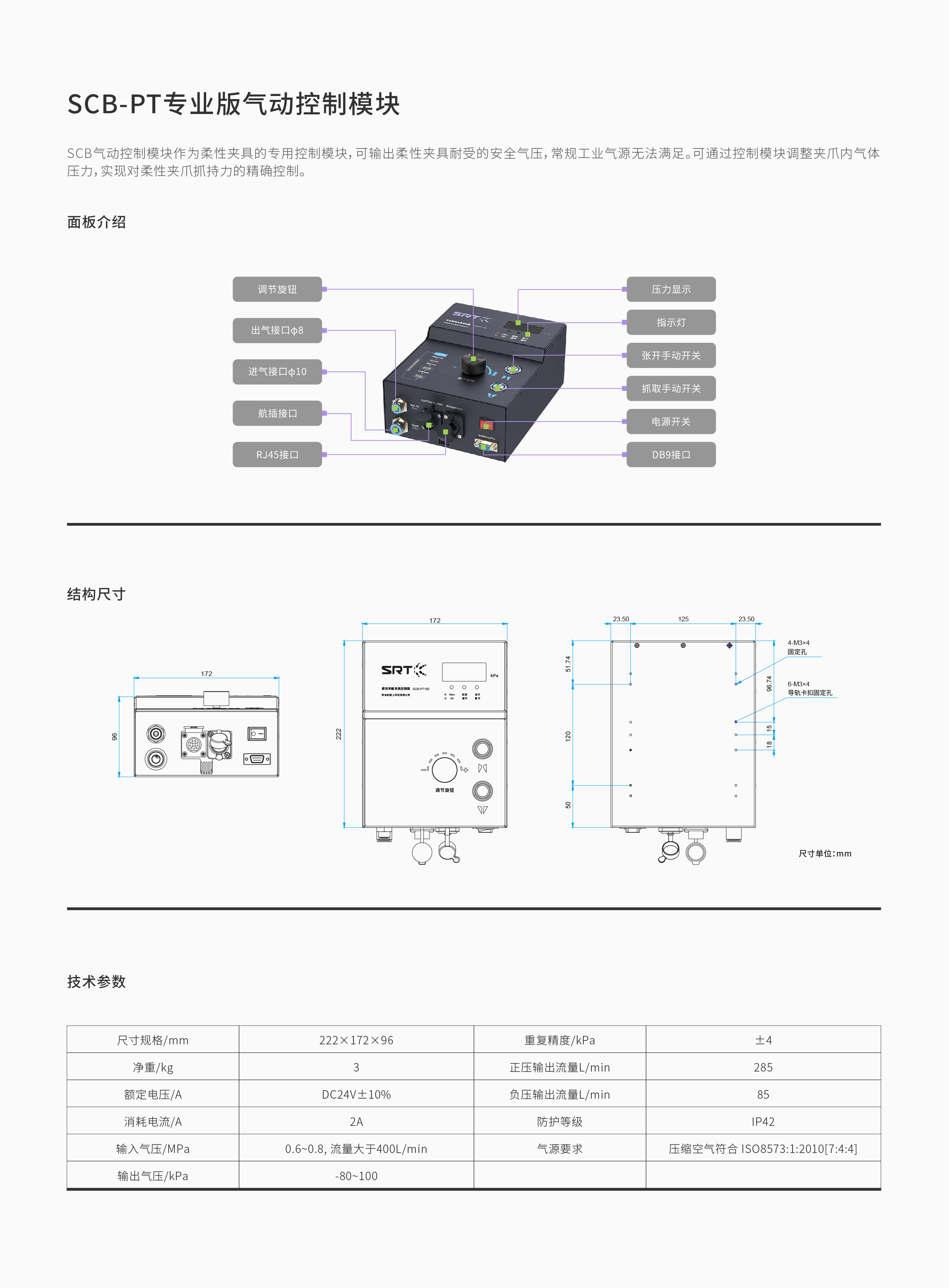

Product parameter

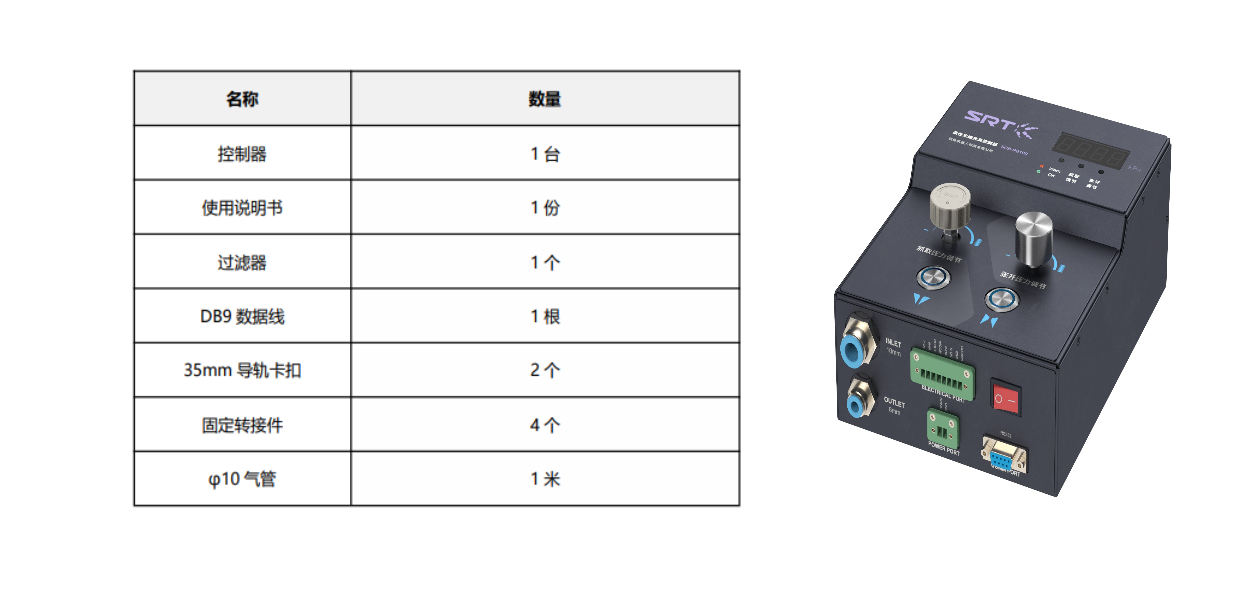

Product standard
